Seco

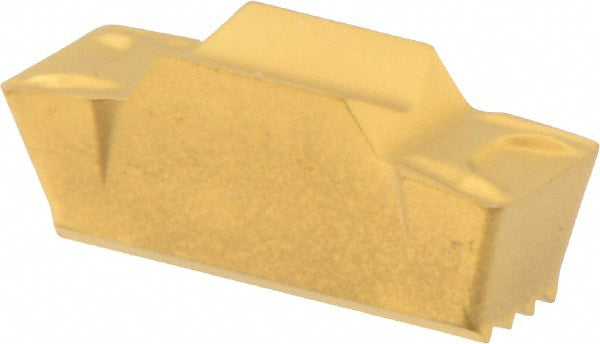

Solid Carbide Insert, Grade CP500, TiAlN - Seco 00096701
MFR# 00096701Series LCMF
$44.38List $56.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00096701 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFT
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting height0.1770
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert seat size5
Insert size160504
Insert size code1605040500
Insert styleLCMF
Manufacturer gradeCP500
Material gradeMicrograin
Maximum corner radius0.0310
Minimum corner radius0.0160
Multi use toolNo
Overall length0.6300
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO
