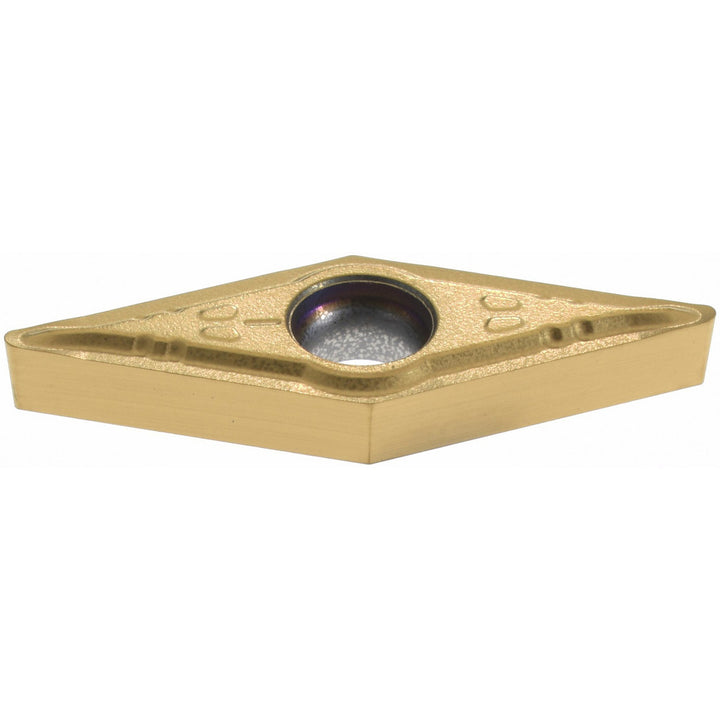

VBMT110204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096708

Seco

VBMT110204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096708

MFR# 00096708ISO/ANSI# VBMT110204Series VBMT-F1

$21.97List $28.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00096708 is a VBMT110204-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeVBMT21.51
Ansi size code21.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle35
Industry standard numberVBMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code21.51
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT110204-F1
Iso insert codeVBMT110204
Iso size code110204
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00096708
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4173
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
