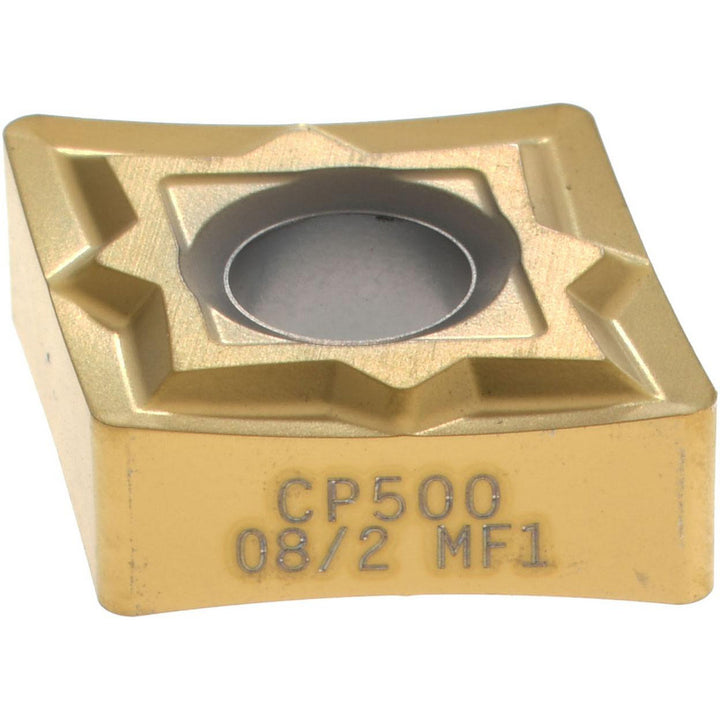

CNMG120408-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00096864

Seco

CNMG120408-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00096864

MFR# 00096864ISO/ANSI# CNMP120408Series CNMP-MF1

$18.77List $24.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00096864 is a CNMG120408-MF1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMP432
Ansi size code432
Chip breakerMF1
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMP432-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMP
Insert thickness in3/16
Iso codeCNMG120408-MF1
Iso insert codeCNMP120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number00096864
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
