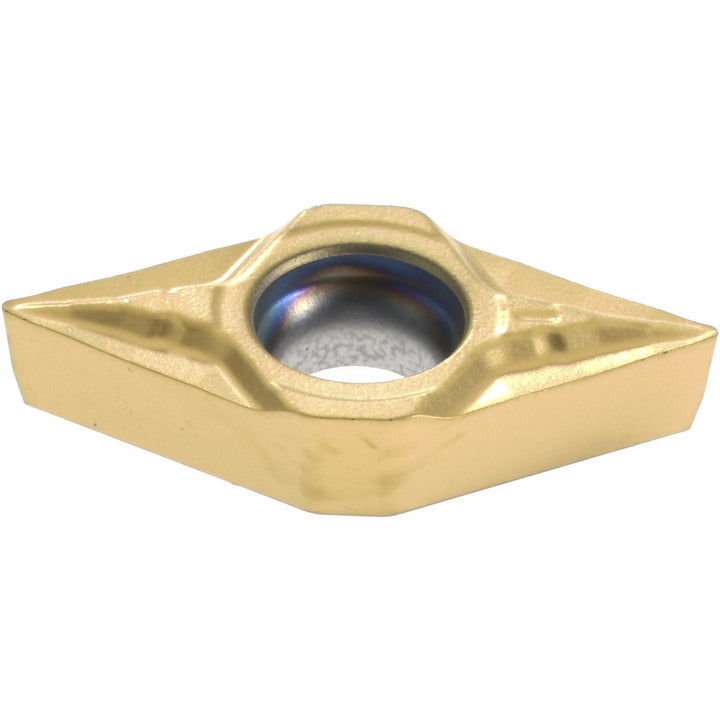

DCMT070202-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096867

Seco

DCMT070202-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096867

MFR# 00096867ISO/ANSI# DCMT070202Series DCMT-F1

$14.66List $18.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00096867 is a DCMT070202-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeDCMT21.50.5
Ansi size code21.50.5
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle55
Industry standard numberDCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.50.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070202-F1
Iso insert codeDCMT070202
Iso size code070202
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number00096867
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2992
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
