Seco

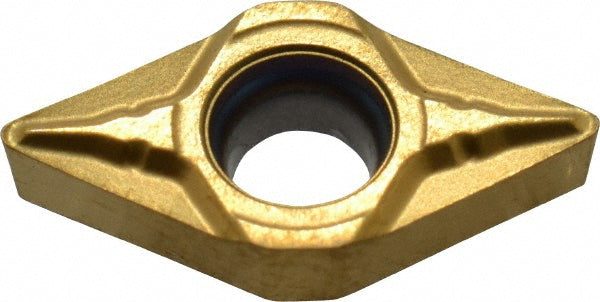

DCMT070204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096868
MFR# 00096868ISO/ANSI# DCMT21.51-F1Series DCMT-F1
$12.81List $16.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00096868 is a DCMT070204-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle55degree
Industry standard numberDCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-F1
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number00096868
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2913
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
