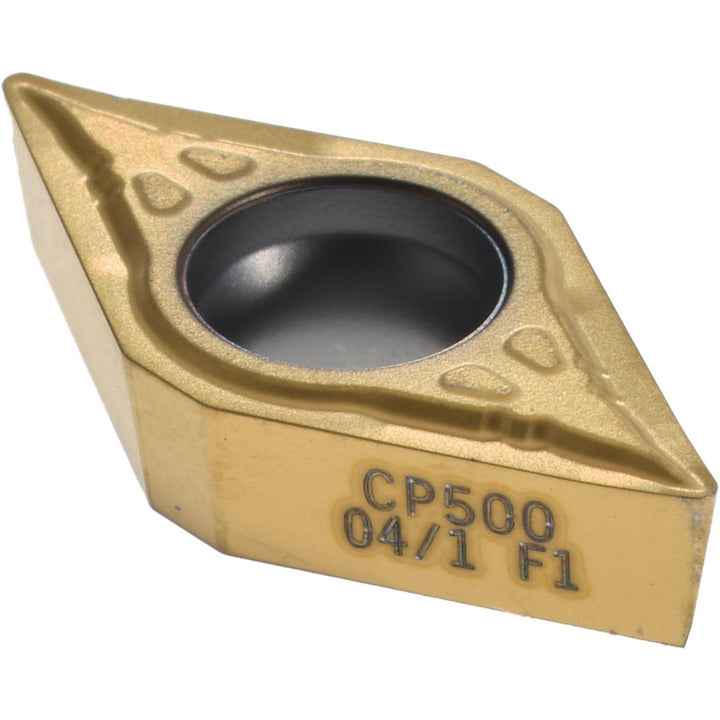

DCMT11T304-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096871

Seco

DCMT11T304-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00096871

MFR# 00096871ISO/ANSI# DCMT11T304Series DCMT-F1

$17.27List $22.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00096871 is a DCMT11T304-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle55
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Iso insert codeDCMT11T304
Iso size code11T304
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number00096871
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
