Seco

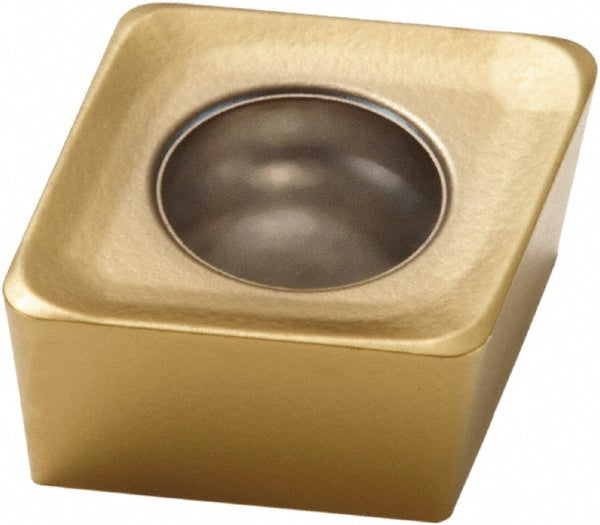

CCMX060304T-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00097964
MFR# 00097964ISO/ANSI# CCMX060304T-M07Cat# CCMX060304T-M07Series CCMX-06
$22.74List $29.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00097964 is a CCMX060304T-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeCCMX060304T-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge effective length0.2500
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree80
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size06
Insert size code060304
Insert styleCCMX
Iso codeCCMX060304T-M07
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberCCMX060304T-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle9
Relief angle7
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width in1/4
