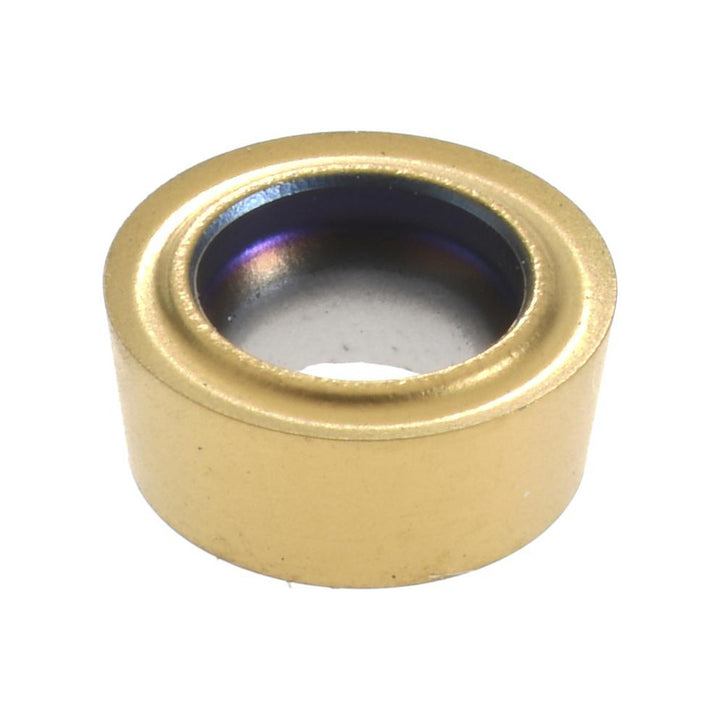

RCMT0602M0-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00098008

Seco

RCMT0602M0-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00098008

MFR# 00098008ISO/ANSI# RCMT0602M0Series RCMT-F1

$11.38List $14.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeR - Round
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00098008 is a RCMT0602M0-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeRCMT21.5M0
Ansi size code21.5M0
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting edge styleSharp
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle360
Industry standard numberRCMT0602M0-F1
Inscribed circle0.2362
Insert handNeutral
Insert holding methodScrew
Insert length0.2362
Insert materialCarbide
Insert shapeR - Round
Insert size code0602M0
Insert styleRCMT
Insert thickness in3/32
Iso codeRCMT0602M0-F1
Iso insert codeRCMT0602M0
Iso size code0602M0
Lead angle360
Length range0.0000 - 0.3000
Manufacturers catalog number00098008
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1181
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.2362
Wiper edgeNo
