Seco

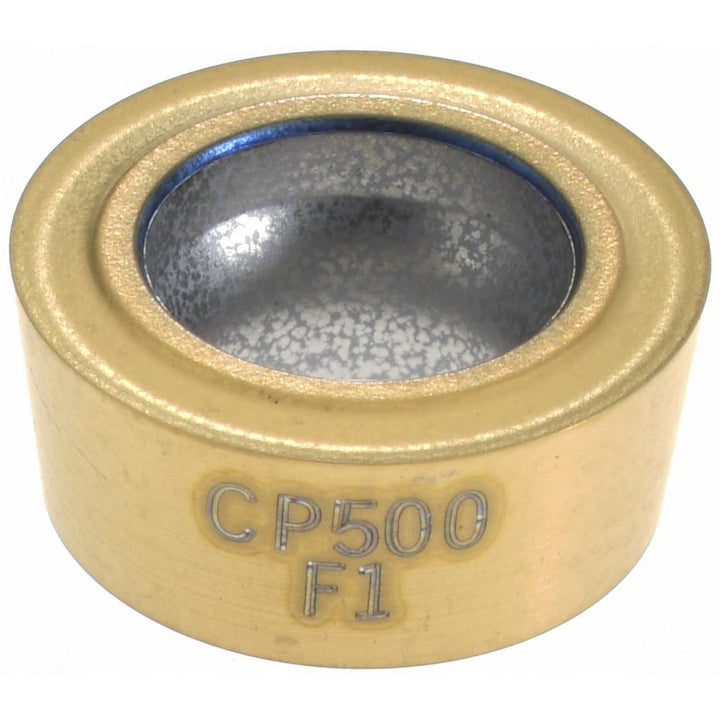

RCMT10T3M0-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00098302
MFR# 00098302ISO/ANSI# RCMT10T3M0Series RCMT-F1
$13.90List $17.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00098302 is a RCMT10T3M0-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Ansi insert codeRCMT10T3M0
Ansi size code10T3M0
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.1969
Cutting edge styleSharp
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle360
Industry standard numberRCMT10T3M0-F1
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length0.3937
Insert materialCarbide
Insert shapeR - Round
Insert size code10T3M0
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT10T3M0-F1
Iso insert codeRCMT10T3M0
Iso size code10T3M0
Lead angle360
Length range0.3000 - 0.4000
Manufacturers catalog number00098302
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1969
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3937
Wiper edgeNo
