Seco

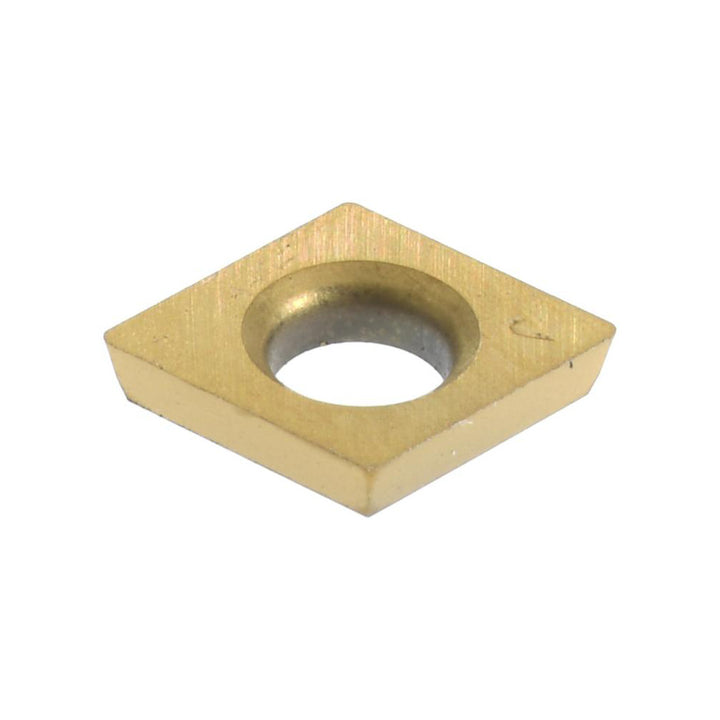

CDCB04T002 Carbide Insert, Grade CP500, TiAlN - Seco 00098795
MFR# 00098795ISO/ANSI# CDCB04T002Series CDCB-Flat Top
$34.72List $43.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00098795 is a CDCB04T002 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0803
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code1.21.20.5
Insert styleCDCB
Iso codeCDCB04T002
Lead angle80
Length0.1587
Manufacturers catalog number00098795
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1508
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle0
Relief angle15
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Width0.1563
