Seco

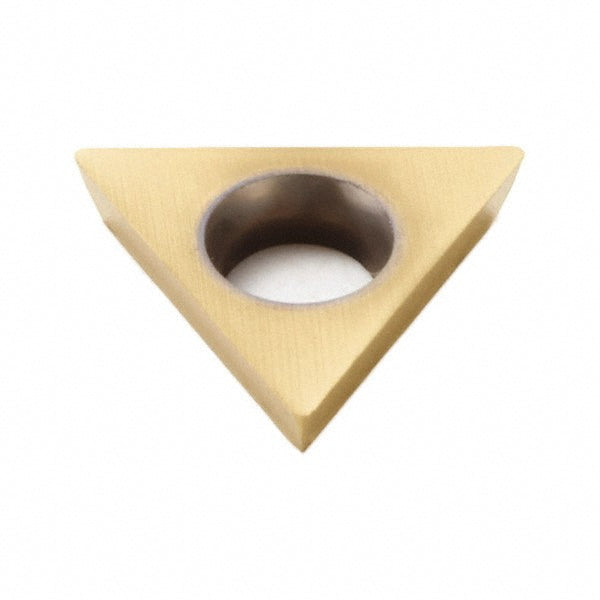

TDAB06T002 Carbide Insert, Grade CP500, TiAlN - Seco 00098798
MFR# 00098798ISO/ANSI# TDAB06T002Series TDAB-Flat Top
$26.86List $34.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00098798 is a TDAB06T002 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0929
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.50.5
Insert styleTDAB
Iso codeTDAB06T002
Lead angle60
Length0.2677
Manufacturers catalog number00098798
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2598
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle0
Relief angle15
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Width0.2677
