Seco

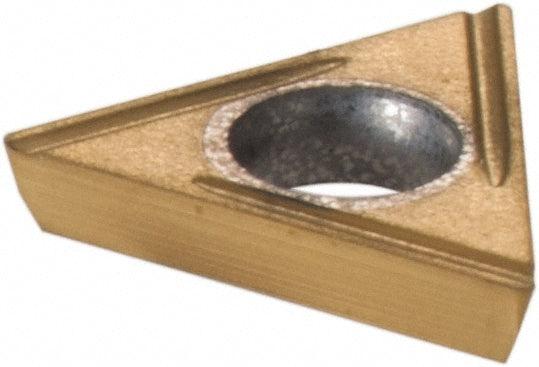

TDCH06T002L Carbide Insert, Grade CP500, TiAlN - Seco 00098800
MFR# 00098800ISO/ANSI# TDCH06T002LSeries TDCH-Flat Top
$29.13List $37.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00098800 is a TDCH06T002L carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0929
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.50.5
Insert styleTDCH
Iso codeTDCH06T002L
Lead angle60
Length0.2677
Manufacturers catalog number00098800
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2598
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle15
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Width0.2677
