Seco
Indexable Milling Cutters - Seco 00098952
MFR# 00098952Series R220.21
$882.50List $921.24
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

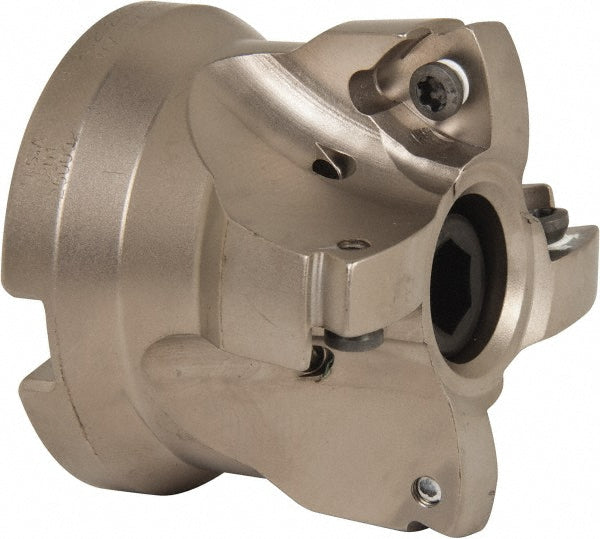

The Seco 00098952 indexable milling cutters. Series R220.21.
Specifications
Arbor hole diameter0.7500
Compatible insert size code218.19-160
Coolant throughYes
Cutter styleR220.21
Cutting diameter2.0000
Cutting directionRight Hand
Insert compatibility218.19-160..
Insert holding methodScrew
Keyway width0.3200
Maximum body diameter2.0000
Maximum cutting diameter2.0000
Maximum depth of cut0.0800
Maximum ramping angle1.17
Maximum rpm12900
Minimum cutting diameter1.3460
Number of cutter inserts4
Number of flutes4
Overall height1.6000
Tool applicationFace Milling; Helical Interpolation; Plunging; Ramping; Slotting
