Seco

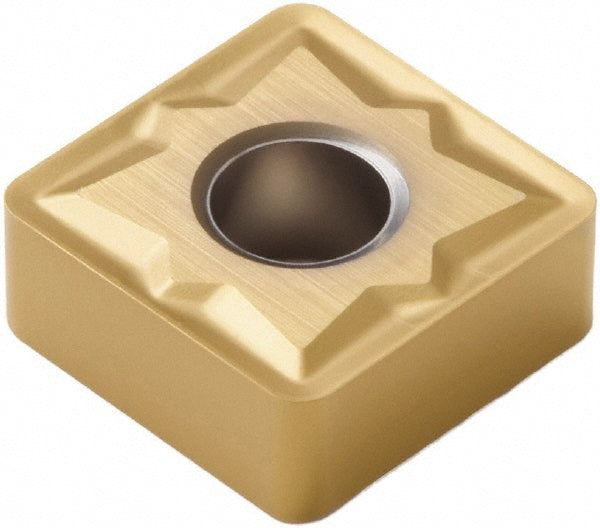

SNMG120412-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00098982
MFR# 00098982ISO/ANSI# SNMG433-MR3Series SNMG-MR3
$18.77List $24.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00098982 is a SNMG120412-MR3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG433-MR3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412-MR3
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00098982
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4528
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
