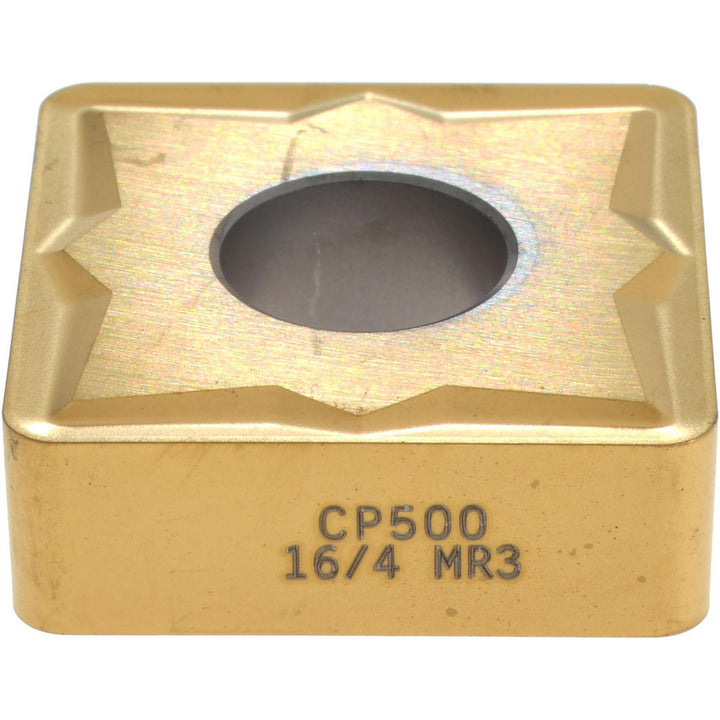

SNMG190616-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00098983

Seco

SNMG190616-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00098983

MFR# 00098983ISO/ANSI# SNMG190616Series SNMG-MR3

$41.34List $53.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00098983 is a SNMG190616-MR3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeSNMG644
Ansi size code644
Chip breakerMR3
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3118
Included angle90
Industry standard numberSNMG644-MR3
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616-MR3
Iso insert codeSNMG190616
Iso size code190616
Lead angle90
Length range0.7000 - 10.0000
Manufacturers catalog number00098983
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6870
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
