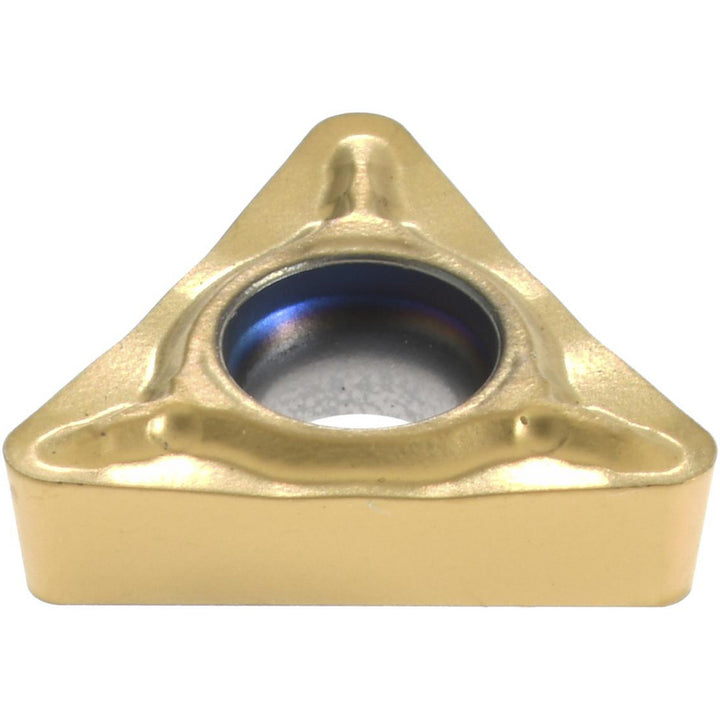

TCMT110208-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00098986

Seco

TCMT110208-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00098986

MFR# 00098986ISO/ANSI# TCMT110208Series TCMT-F1

$14.32List $18.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00098986 is a TCMT110208-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeTCMT21.52
Ansi size code21.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle60
Industry standard numberTCMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.52
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110208-F1
Iso insert codeTCMT110208
Iso size code110208
Lead angle60
Length range0.4000 - 0.5000
Manufacturers catalog number00098986
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3543
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
