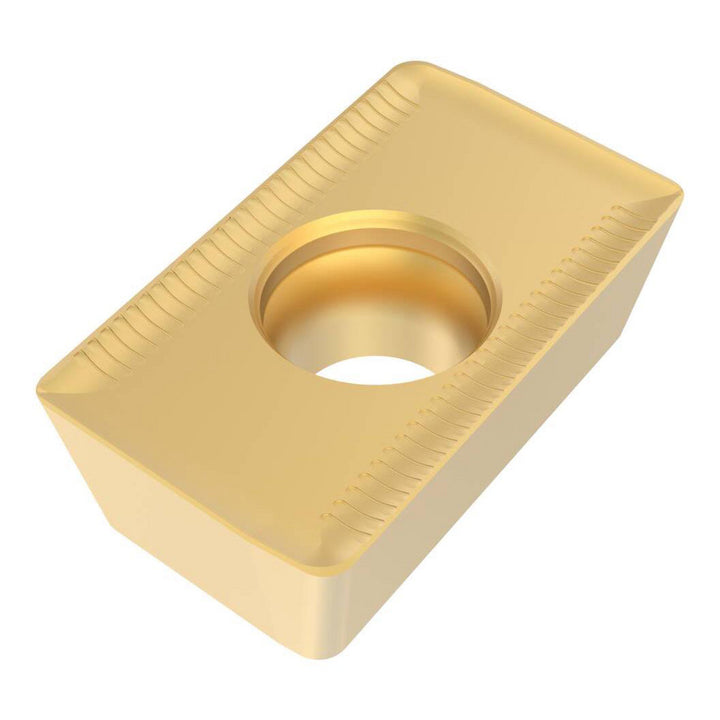

APKT1604PDTR-ME14 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00099174

Seco

APKT1604PDTR-ME14 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00099174

MFR# 00099174ISO/ANSI# APKT1604PDTR-ME14Cat# APKT1604PDTR-ME14Series APKT-16

$31.92List $40.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00099174 is a APKT1604PDTR-ME14 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPKT1604PDTR-ME14
Chip breakerME14
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT1604PDTR-ME14
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT1604PDTR-ME14
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle24
Relief angle11.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
