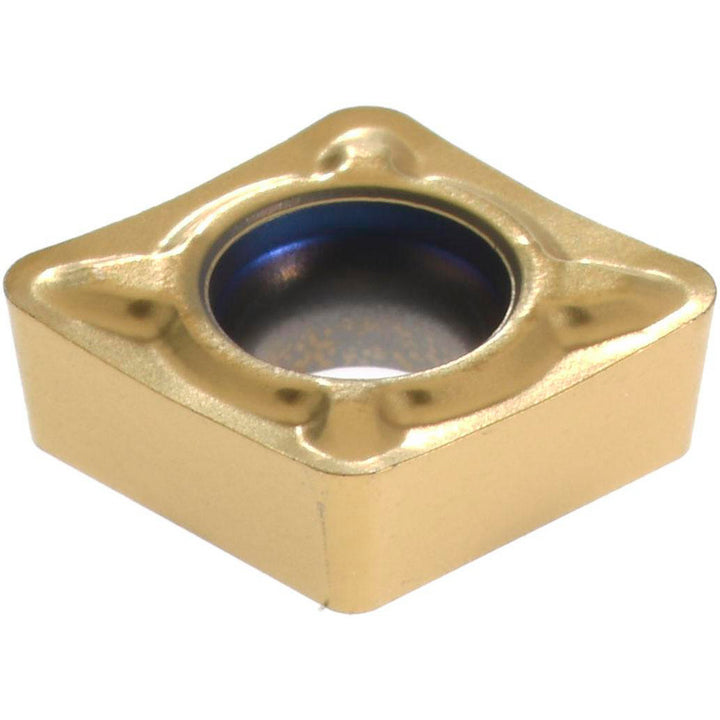

CCMT060208-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00099407

Seco

CCMT060208-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00099407

MFR# 00099407ISO/ANSI# CCMT060208Series CCMT-F1

$12.81List $16.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00099407 is a CCMT060208-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-F1
Iso insert codeCCMT060208
Iso size code060208
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number00099407
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2205
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
