Seco

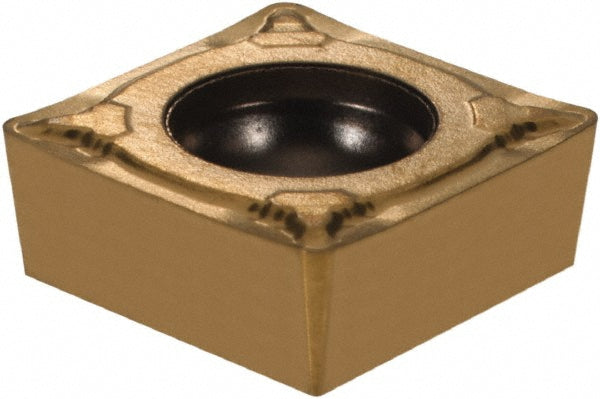

SCMT120408-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00099804
MFR# 00099804ISO/ANSI# SCMT432-F1Series SCMT-F1
$20.80List $26.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00099804 is a SCMT120408-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2205
Included angle90degree
Industry standard numberSCMT432-F1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT120408-F1
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00099804
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
