Seco

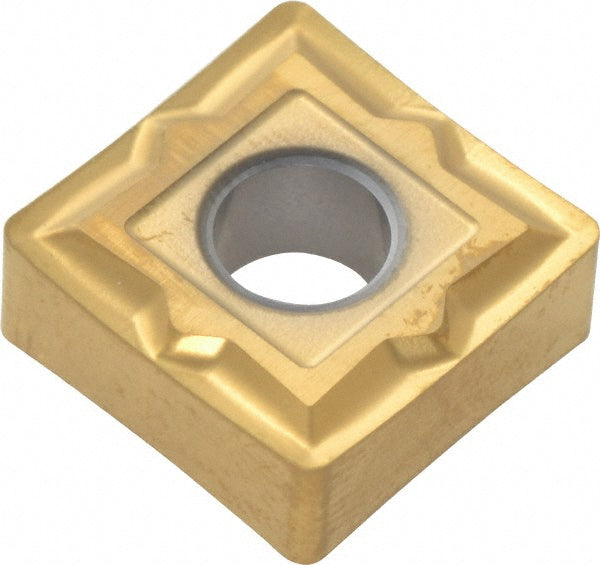

SNMG120408-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00099808
MFR# 00099808ISO/ANSI# SNMP432-MF1Series SNMP-MF1
$18.77List $24.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00099808 is a SNMG120408-MF1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMP432-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMP
Insert thickness in3/16
Iso codeSNMG120408-MF1
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00099808
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
