Seco

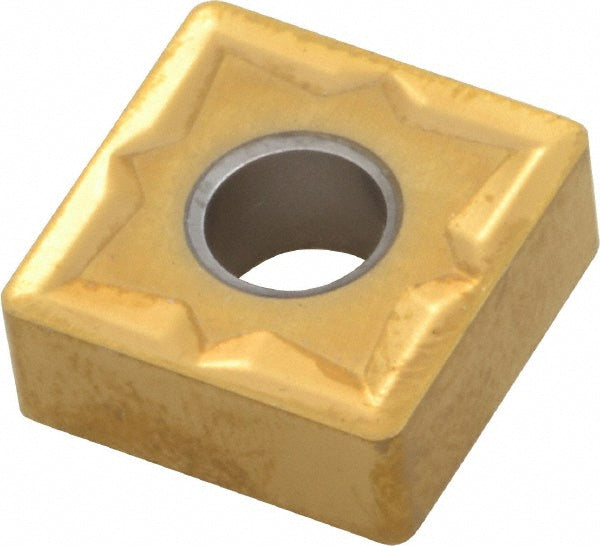

SNMG120408-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00099812
MFR# 00099812ISO/ANSI# SNMG432-MR3Series SNMG-MR3
$22.88List $28.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00099812 is a SNMG120408-MR3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG432-MR3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408-MR3
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number00099812
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
