Seco

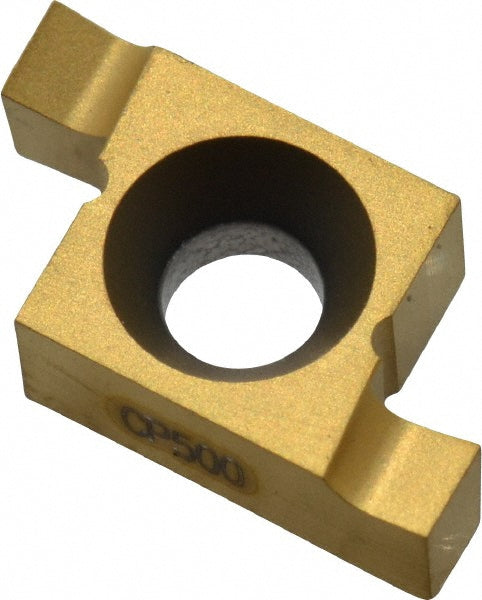

1/4" IC Carbide Insert, Grade CP500, TiAlN - Seco 00731879
MFR# 00731879Series Snap Tap
$34.01List $43.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00731879 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFG
Coating finishTiAlN
Coating processPVD
Cutting width0.0860in
Full radiusNo
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size10
Insert size086
Insert size code10086
Insert style10NR
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.0860
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.3543in
Primary workpiece materialUniversal
StandardsISO
