Seco

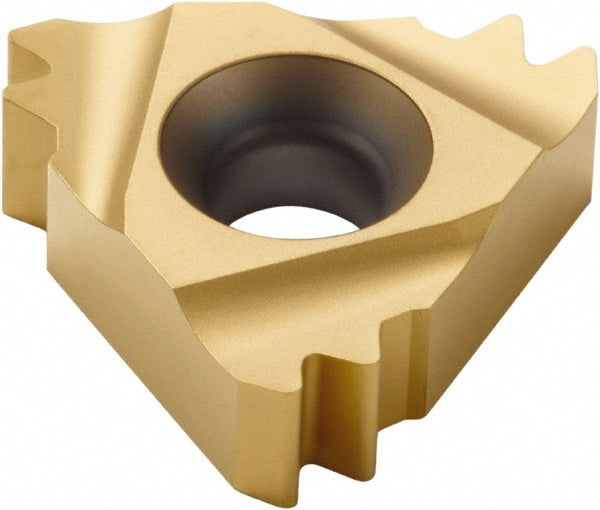

0.6252" IC Solid Carbide Insert, Grade CP300, Coated - Seco 00731890
MFR# 00731890Series Snap Tap
$131.35List $168.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP300
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00731890 is a solid carbide indexable insert, grade CP300, Coated coated. Suited for steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.4600
Included angle60
Inscribed circle0.6252
Insert handRight Hand
Insert materialSolid Carbide
Insert size code27
Insert style27NR
Manufacturer gradeCP300
Primary workpiece materialSteel
StandardsISO
Thickness0.2421
Threads per inch8
Thread standardAPI Round
Thread typeInternal
