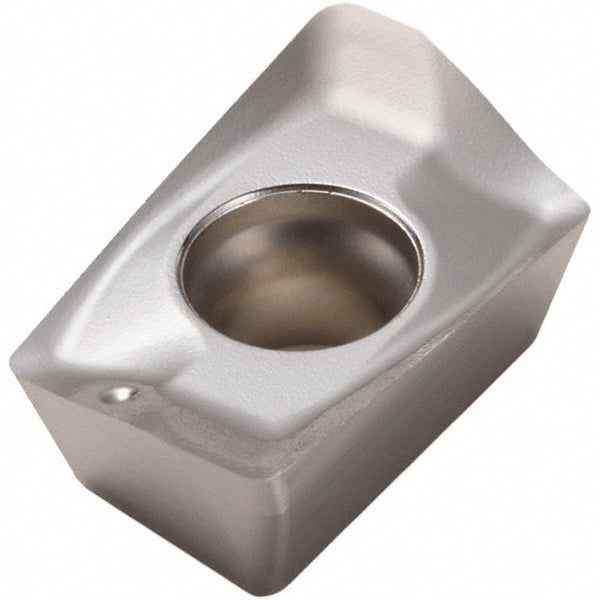

XOEX120408FR-E06 Solid Carbide Insert, Grade H15 - Seco 02205058
MFR# 02205058ISO/ANSI# XOEX120408FR-E06Cat# XOEX120408FR-E06Series XOEX-12
$27.37List $35.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH15
MaterialSolid Carbide
Description
The Seco 02205058 is a XOEX120408FR-E06 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX120408FR-E06
Chip breakerE06
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4724
Cutting edge styleSharp
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOEX
Iso codeXOEX120408FR-E06
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXOEX120408FR-E06
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle27.2
Relief angle15
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3228
