Seco

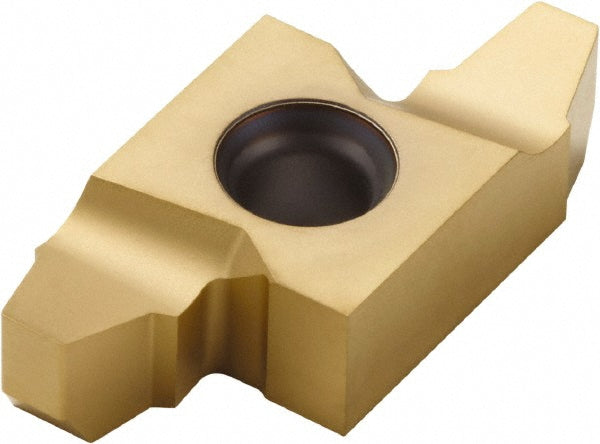

1/2" IC Solid Carbide Insert, Grade CP500, TiAlN - Seco 02206171
MFR# 02206171Series Snap Tap
$132.21List $169.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02206171 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle29
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code20
Insert style20NR
Manufacturer gradeCP500
Primary workpiece materialUniversal
StandardsISO
Thickness0.2480
Threads per inch3.5
Thread standardAcme
Thread typeInternal
