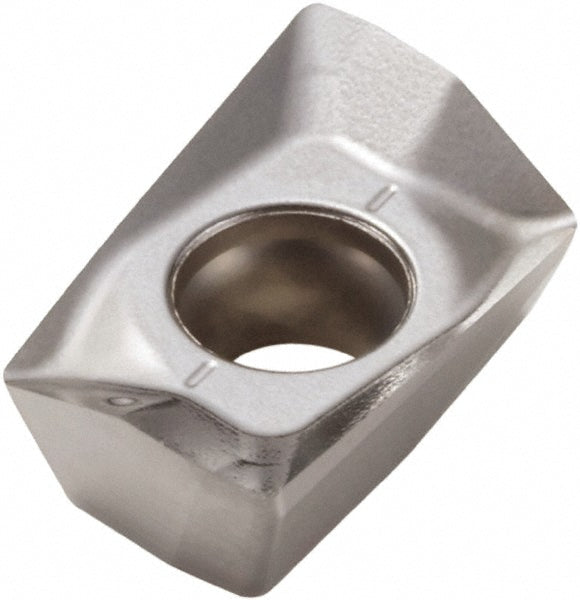

XOEX090304FR-E05 Solid Carbide Insert, Grade H15 - Seco 02409195
MFR# 02409195ISO/ANSI# XOEX090304FR-E05Cat# XOEX090304FR-E05Series XOEX-09
$32.99
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeH15
MaterialSolid Carbide
Description
The Seco 02409195 is a XOEX090304FR-E05 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX090304FR-E05
Chip breakerE05
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR217.69-09; R220.69-09
Cutting edge effective length0.3543
Cutting edge styleSharp
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090304
Insert styleXOEX
Iso codeXOEX090304FR-E05
Length0.3543
Length range0.3200 to 0.4000
Manufacturers catalog numberXOEX090304FR-E05
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle30.5
Relief angle15
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1437
Thickness range0.1250 to 0.1500
Width in1/4
