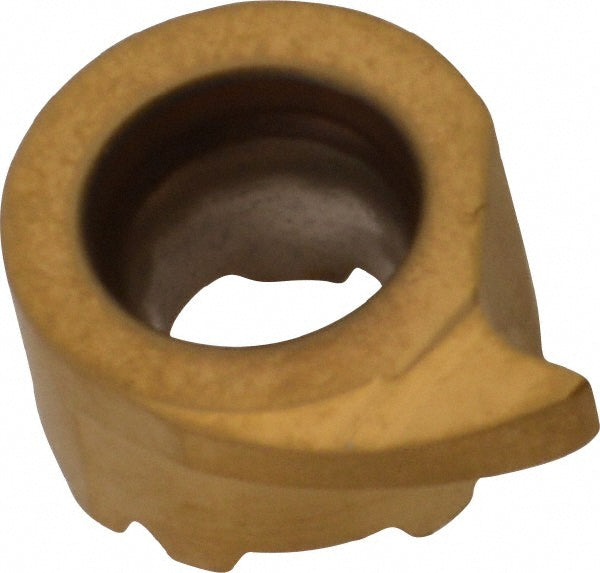

LCEX110502-0150R Carbide Insert, Grade CP500, TiAlN - Seco 02411046
MFR# 02411046ISO/ANSI# LCEX110502-0150RSeries LCEX-Common
$37.96List $47.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02411046 is a LCEX110502-0150R carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Full radiusNo
Inscribed circle0.4331
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size code110502
Insert styleLCEX
Insert thickness0.1575
Iso codeLCEX110502-0150R
Lead angle90
Manufacturers catalog number02411046
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1024
Multi use toolYes
Number of cutting edges1
Primary workpiece materialStainless Steel
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
