Seco
Indexable Milling Cutters - Seco 02422139
MFR# 02422139Series R220.53
$695.35List $738.71
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

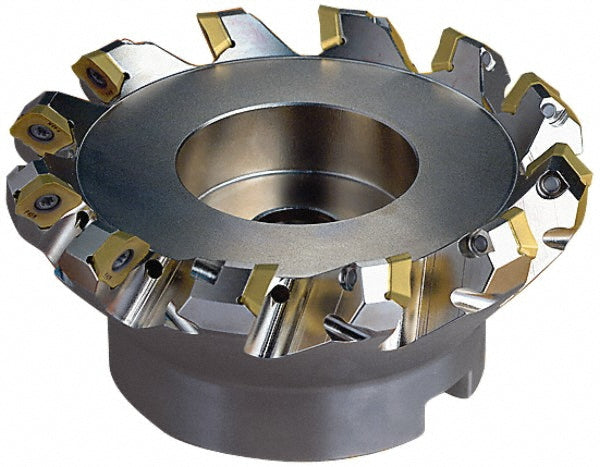

The Seco 02422139 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSE X 43
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width0.3200
Maximum cutting diameter2.0500
Maximum depth of cut0.2360
Minimum cutting diameter1.5700
Number of cutter inserts4
Number of flutes4
Overall height1.5700
Pitch typeClose
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
