Seco
Indexable Milling Cutters - Seco 02422140
MFR# 02422140Series R220.53
$761.46List $794.89
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

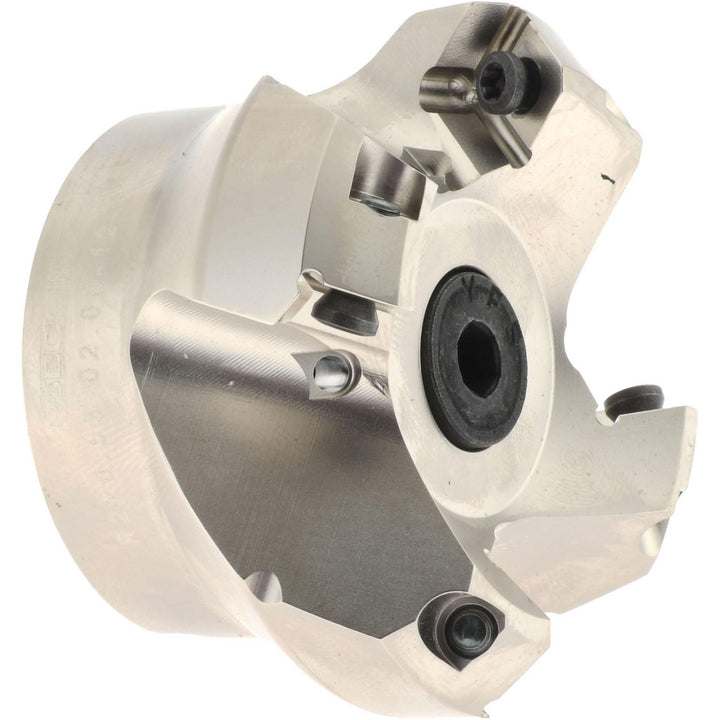

The Seco 02422140 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSE X 1204
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width (mm)8.20
Maximum body diameter2.4400
Maximum cutting diameter2.4400
Maximum depth of cut0.2360
Maximum rpm14800
Minimum cutting diameter1.9700
Number of cutter inserts4
Number of flutes4
Overall height1.5700
Pitch typeNormal
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
