Seco

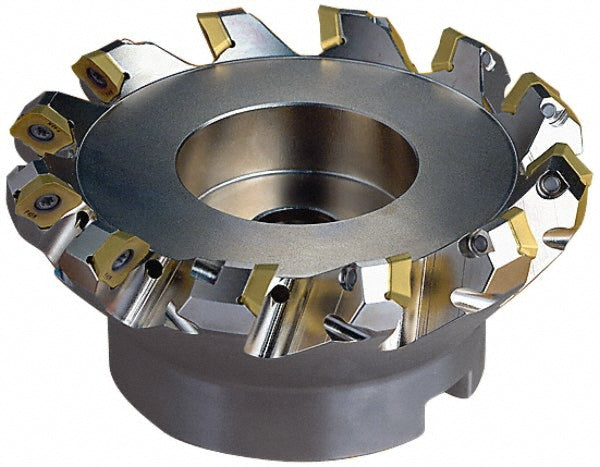

Indexable Milling Cutters - Seco 02422141
MFR# 02422141Series R220.53
$826.49List $878.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02422141 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeSE X 43
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width (mm)8.20
Maximum cutting diameter2.4400
Maximum depth of cut0.2360
Minimum cutting diameter1.9700
Number of cutter inserts5
Number of flutes5
Overall height1.5700
Pitch typeClose
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
