Seco

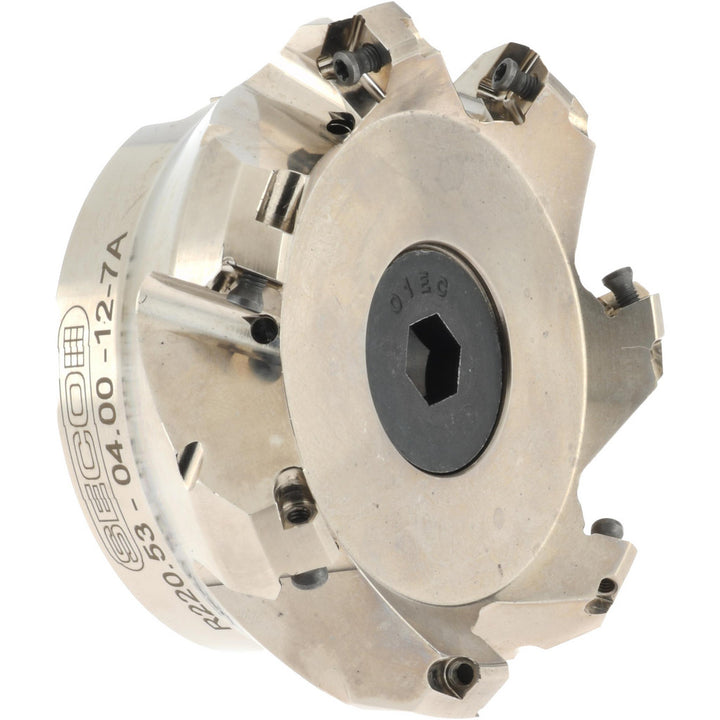

Indexable Milling Cutters - Seco 02422146
MFR# 02422146Series R220.53
$1,189.42List $1,263.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Seco 02422146 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeSE X 1204
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter3.5430
Insert holding methodScrew
Keyway width0.6300
Maximum body diameter4.4100
Maximum cutting diameter4.4100
Maximum depth of cut0.2360
Maximum rpm10500
Minimum cutting diameter3.9400
Number of cutter inserts7
Number of flutes7
Overall height1.9700
Pitch typeNormal
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
