Seco
Indexable Milling Cutters - Seco 02422254
MFR# 02422254Series R220.53
$695.35List $738.71
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

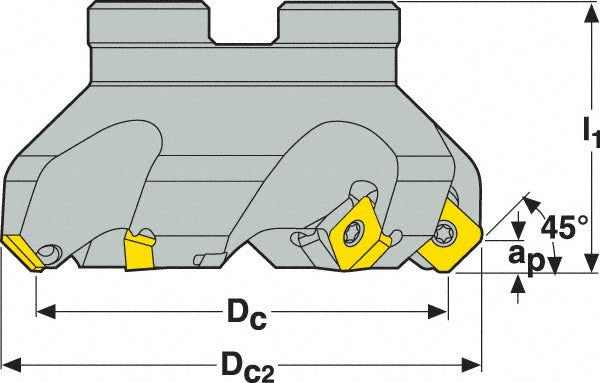

The Seco 02422254 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSE 09T3
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width0.3200
Maximum body diameter1.9700
Maximum cutting diameter1.9700
Maximum depth of cut0.1800
Maximum rpm17700
Minimum cutting diameter1.5700
Number of cutter inserts4
Number of flutes4
Overall height1.5700
Pitch typeNormal
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
