Seco

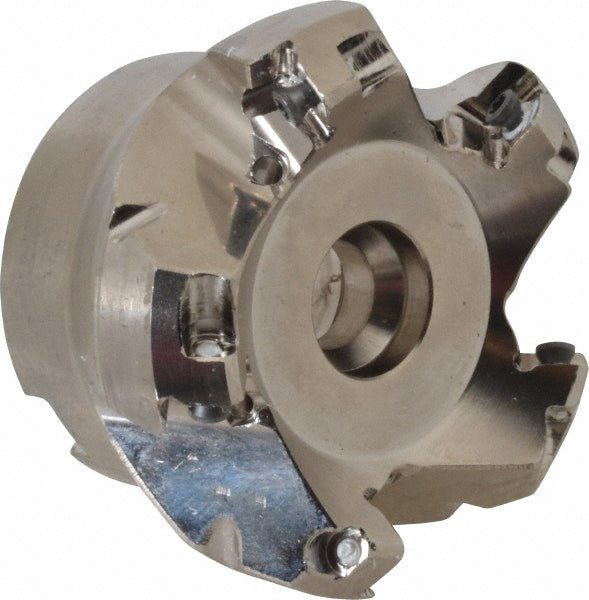

Indexable Milling Cutters - Seco 02422255
MFR# 02422255Series R220.53
$826.49List $878.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02422255 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSE 09T3
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width (mm)8.20
Maximum body diameter2.3600
Maximum cutting diameter2.3600
Maximum depth of cut0.1800
Maximum rpm15800
Minimum cutting diameter1.9700
Number of cutter inserts5
Number of flutes5
Overall height1.5700
Pitch typeNormal
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
