Seco

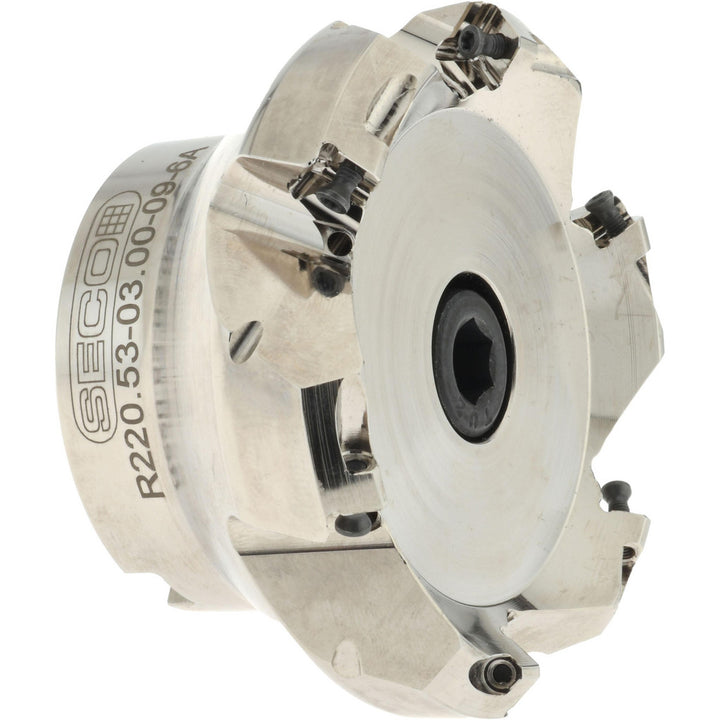

Indexable Milling Cutters - Seco 02422257
MFR# 02422257Series R220.53
$1,036.92List $1,101.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 02422257 indexable milling cutters. Series R220.53.
Specifications
Arbor hole diameter in1
Compatible insert size codeSE 09T3
Coolant throughYes
Cutter styleR220.53
Cutting directionRight Hand
Hub diameter2.4410
Insert holding methodScrew
Keyway width0.3800
Maximum body diameter3.5400
Maximum cutting diameter3.5400
Maximum depth of cut0.1800
Maximum rpm12500
Minimum cutting diameter3.1500
Number of cutter inserts6
Number of flutes6
Overall height1.9700
Pitch typeNormal
RakeNegative (Radial); Positive (Axial)
Tool applicationFacing
