Seco

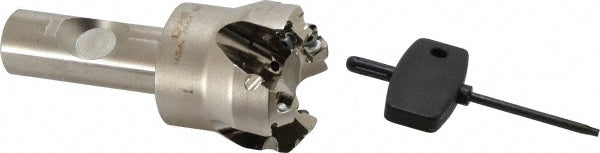

Indexable End Mills - Seco 02422261
MFR# 02422261Series QuattroMill
$605.23List $631.80
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02422261 indexable end mills. Series QuattroMill.
Specifications
Compatible insert size codeSE.X09T3
Complete insert compatibilitySE.. 09T3
Coolant throughYes
Cutting diameter1.2600
Functional length1.2990
Head length1.5700
Insert holding methodScrew
Insert styleSE.. 09T3
Maximum body diameter0.7500
Maximum cutting diameter1.6500
Maximum depth of cut0.1800
Maximum rpm19800
Minimum cutting diameter1.2600
Number of cutter inserts4
Overall length3.5400
Shank diameter in3/4
Shank length1.9700
Shank typeWeldon Flat
Toolholder styleR217.53
Tool applicationMilling
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
