Seco

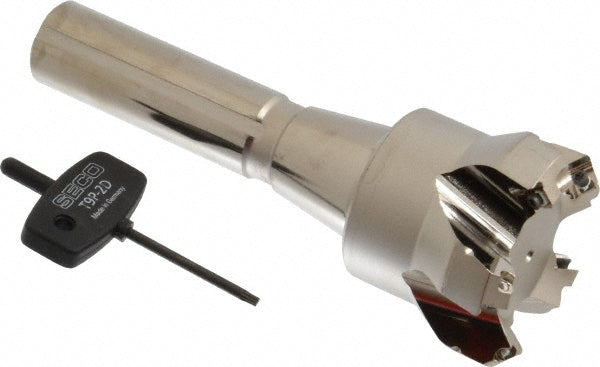

Indexable End Mills - Seco 02422262
MFR# 02422262Series QuattroMill
$719.75List $764.64
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02422262 indexable end mills. Series QuattroMill.
Specifications
Compatible insert size codeSE.X09T3
Complete insert compatibilitySE.. 09T3
Coolant throughNo
Cutting diameter1.9700
Head length1.8900
Insert holding methodScrew
Insert styleSE.. 09T3
Maximum body diameter0.9490
Maximum cutting diameter2.3600
Maximum depth of cut0.1800
Maximum rpm15800
Minimum cutting diameter1.5750
Number of cutter inserts5
Overall length6.0200
Shank diameter0.9490
Shank taper sizeR8
Shank typeTaper
Toolholder styleR217.53
Tool applicationMilling
