Seco

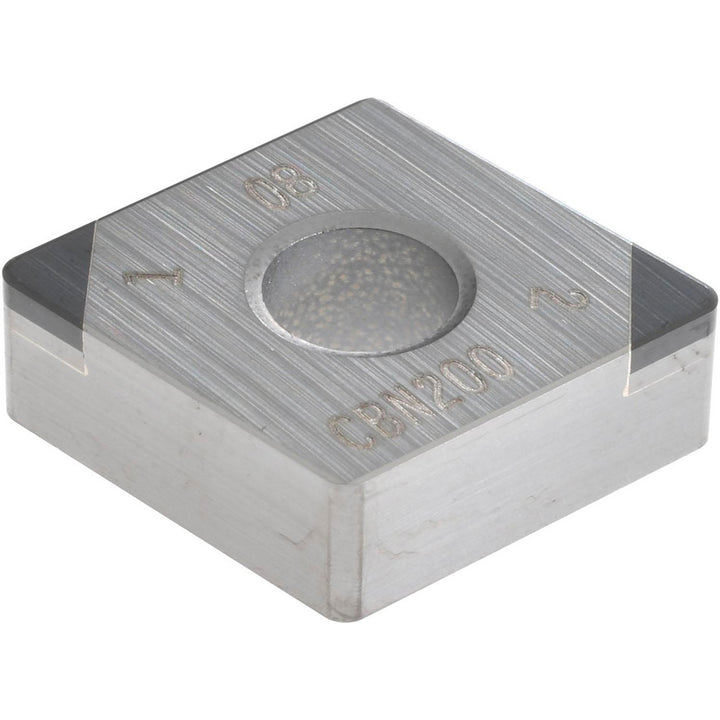

CNGA120408S-02020-L1-B PCBN Insert, Grade CBN200 - Seco 02422749
MFR# 02422749ISO/ANSI# CNGA120408Series CNGA-Flat Top
$110.91
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCBN200
MaterialPCBN
Description
The Seco 02422749 is a CNGA120408S-02020-L1-B pcbn indexable insert, grade CBN200. Suited for cast iron.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNGA432S-00820-L1-B
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S-02020-L1-B
Iso insert codeCNGA120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02422749
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.0400
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuperalloys & Titanium; Hard Material
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0940
Tolerance codeG
Width in1/2
Wiper edgeNo
