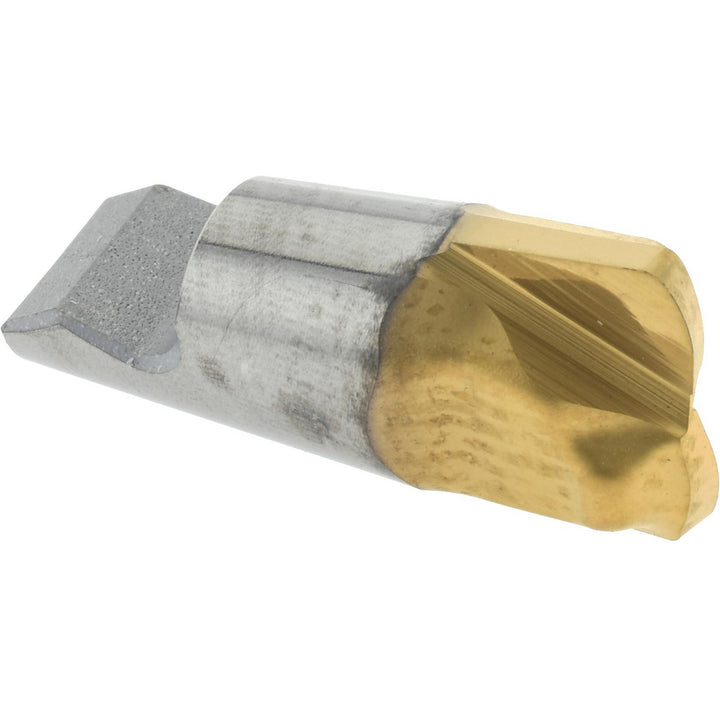

Carbide Insert, Grade F30M, TiAlN - Seco 02424995

Seco

Carbide Insert, Grade F30M, TiAlN - Seco 02424995

MFR# 02424995Series MM08

$101.15
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN

Description

The Seco 02424995 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerMD06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0240
Cutting diameter0.1570
Cutting width0.315
Extension from holder in0.2680
Functional length0.2690
Included angle degree90
Insert handRight Hand
Insert size08.40-HF
Lead angle90
Length of cut0.0150
Manufacturers catalog number02424995
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; K20; K30; H10
Maximum depth of cut0.0150
Milling tip full descriptionMM08-08.40-HF-MD06
Milling tip styleMM08
Milling tip typeSlotting
Number of flutes2
Overall length0.269
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
