Seco

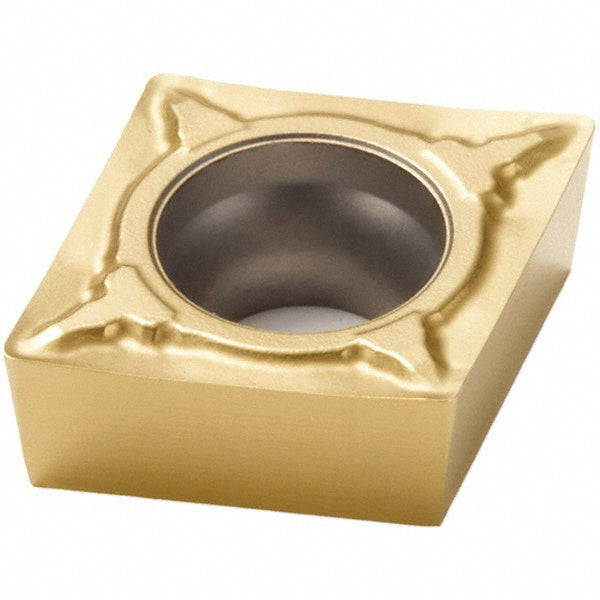

CPMT060204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426020
MFR# 02426020ISO/ANSI# CPMT21.51-F1Series CPMT-F1
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02426020 is a CPMT060204-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCPMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02426020
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2205
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
