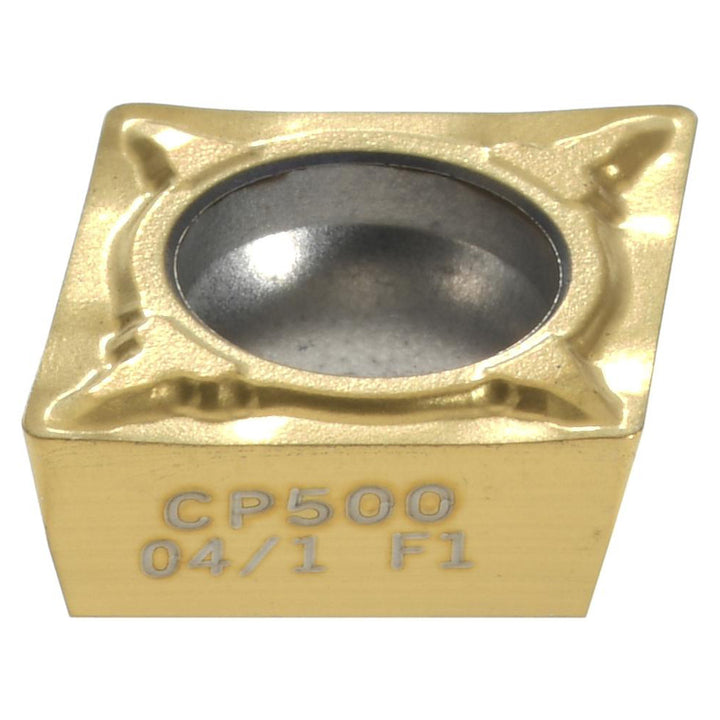

CPMT09T304-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426034

Seco

CPMT09T304-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426034

MFR# 02426034ISO/ANSI# CPMT09T304Series CPMT-F1

$14.90List $19.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02426034 is a CPMT09T304-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCPMT32.51
Ansi size code32.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCPMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T304-F1
Iso insert codeCPMT09T304
Iso size code09T304
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number02426034
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3386
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
