Seco

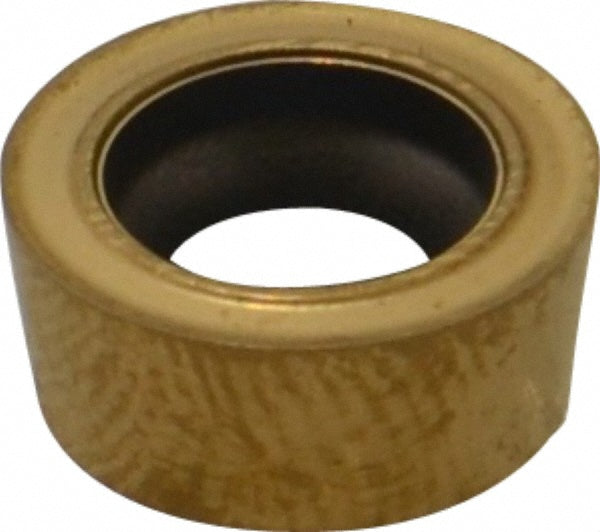

RCMT09T300-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426063
MFR# 02426063ISO/ANSI# RCMT32.5-F1Series RCMT-F1
$13.22List $16.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02426063 is a RCMT09T300-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in3/16
Cutting edge styleSharp
Full radiusYes
Hole diameter0.1535
Included angle360degree
Industry standard numberRCMT32.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeRound
Insert size code32.5
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT09T300-F1
Lead angle360degree
Length range0.3000 - 0.4000
Manufacturers catalog number02426063
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1874
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
