Seco
RCMT120400-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426065
MFR# 02426065ISO/ANSI# RCMT43-F1Series RCMT-F1
$16.59List $21.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeCP500
MaterialCarbide
CoatingTiAlN
Description

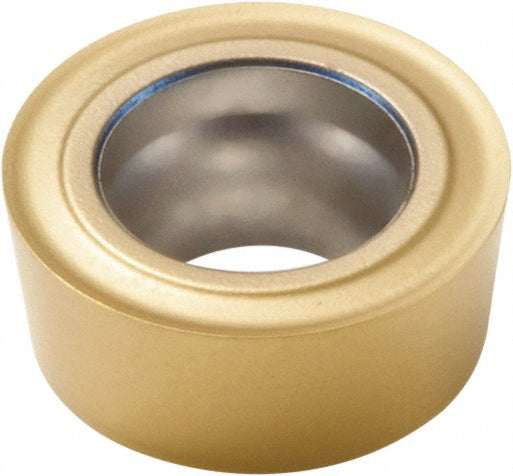

The Seco 02426065 is a RCMT120400-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutting edge styleSharp
Full radiusYes
Hole diameter0.1772
Included angle360degree
Industry standard numberRCMT43-F1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT120400-F1
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number02426065
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2500
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
