Seco

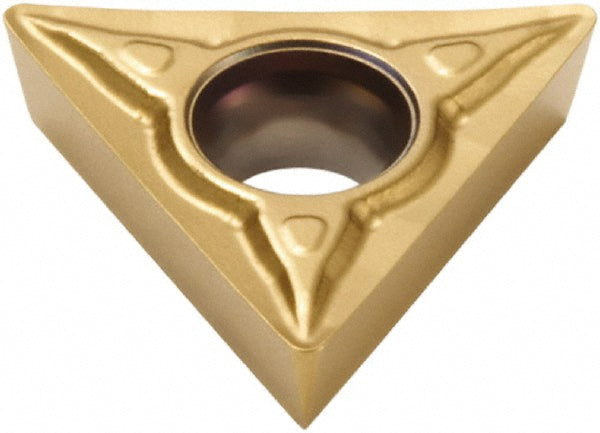

TPMT110204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02426066
MFR# 02426066ISO/ANSI# TPMT21.51-F1Series TPMT-F1
$13.90List $17.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02426066 is a TPMT110204-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTPMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110204-F1
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02426066
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4173
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
