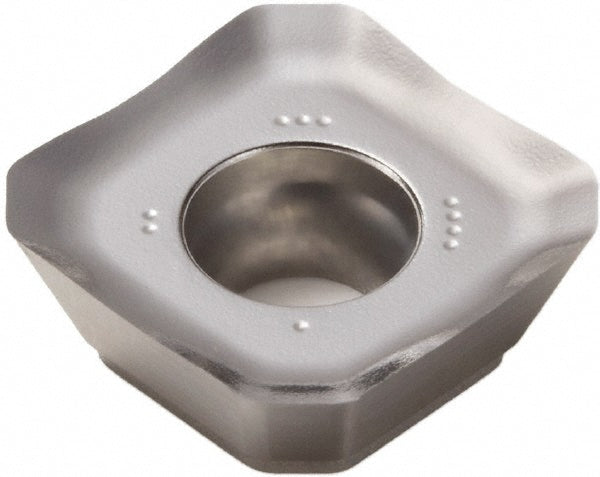

SEEX1204AFN-E08 Solid Carbide Insert, Grade H25 - Seco 02426793
MFR# 02426793ISO/ANSI# SEEX1204AFN-E08Cat# SEEX1204AFN-E08Series SEEX-12
$25.52List $32.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH25
MaterialSolid Carbide
Description
The Seco 02426793 is a SEEX1204AFN-E08 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeSEEX1204AFN-E08
Chip breakerE08
Coating processUncoated
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEEX
Iso codeSEEX1204AFN-E08
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEEX1204AFN-E08
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle20
Secondary workpiece materialSuperalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
