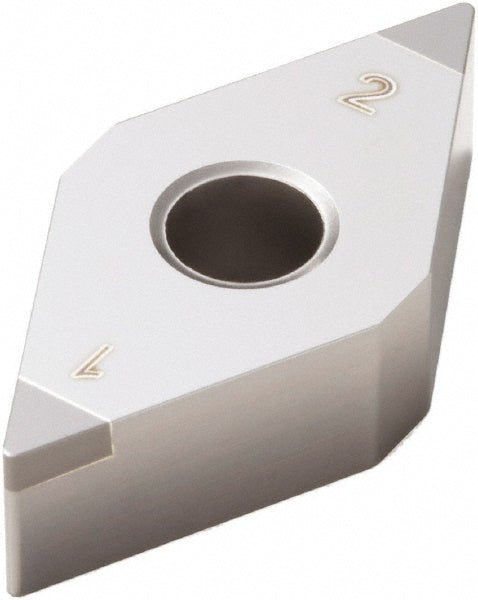

DNGA150408S-02020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02429689
MFR# 02429689ISO/ANSI# DNGA432S-00820-L1-BSeries DNGA-Flat Top
$91.22
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Seco 02429689 is a DNGA150408S-02020-L1-B polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNGA432S-00820-L1-B
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.1812
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408S-02020-L1-B
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02429689
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.0400
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1060
Tolerance codeG
Width in1/2in
Wiper edgeNo
