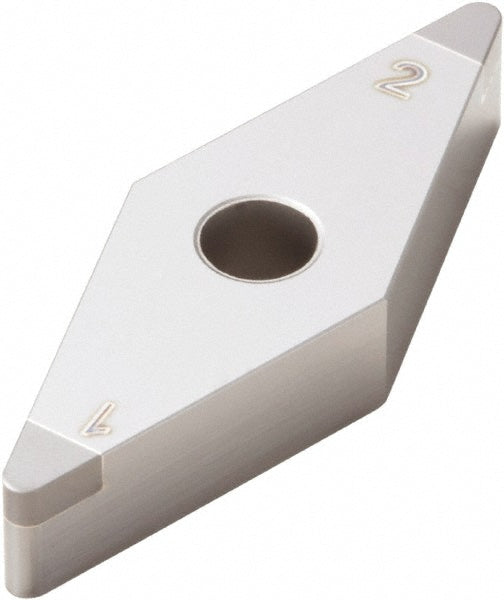

VNGA160408S-02020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02429815

Seco

VNGA160408S-02020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02429815

MFR# 02429815ISO/ANSI# VNGA332S-00820-L1-BSeries VNGA-Flat Top

$91.22
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Seco 02429815 is a VNGA160408S-02020-L1-B polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA332S-00820-L1-B
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2598
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 35
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160408S-02020-L1-B
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02429815
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.0400
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1100
Tolerance codeG
Width in3/8in
Wiper edgeNo
