Seco

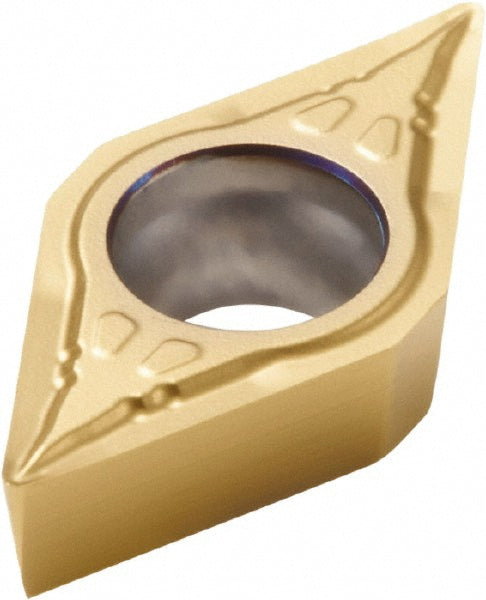

DCMT070204-F1 Carbide Insert, Grade CP200, TiAlN - Seco 02430120
MFR# 02430120ISO/ANSI# DCMT21.51-F1Series DCMT-F1
$12.81List $16.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430120 is a DCMT070204-F1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle55degree
Industry standard numberDCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-F1
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number02430120
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.2913
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
