Seco

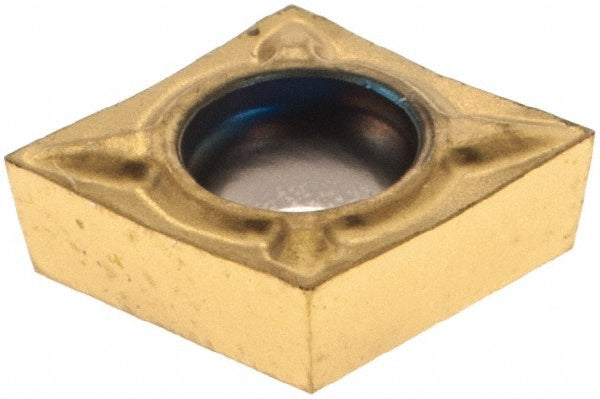

CCGT060201-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430307
MFR# 02430307ISO/ANSI# CCGT21.50-F1Series CCGT-F1
$20.46List $26.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430307 is a CCGT060201-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCGT21.50-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060201-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02430307
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2520
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
