Seco

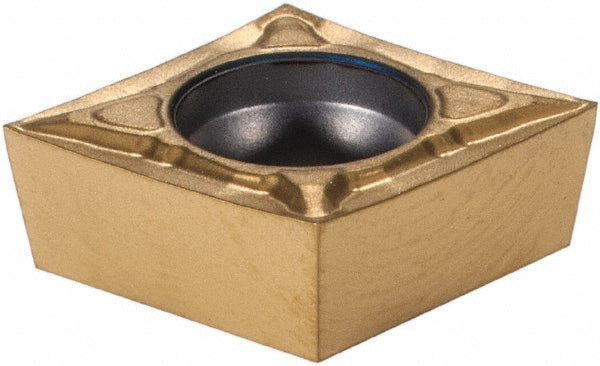

CCGT09T301-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430311
MFR# 02430311ISO/ANSI# CCGT32.50-F1Series CCGT-F1
$23.74List $30.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430311 is a CCGT09T301-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCGT32.50-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.50
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T301-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02430311
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3780
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
