Seco

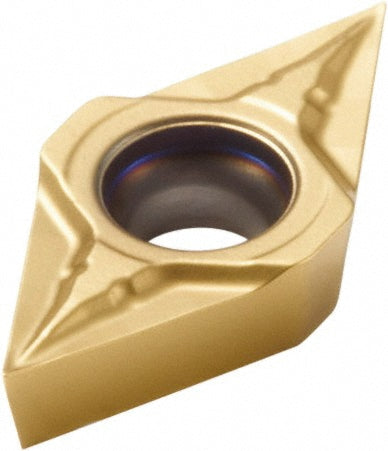

DCGT070201-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430339
MFR# 02430339ISO/ANSI# DCGT21.50-F1Series DCGT-F1
$20.46List $26.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430339 is a DCGT070201-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle55
Industry standard numberDCGT21.50-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201-F1
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number02430339
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3031
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
